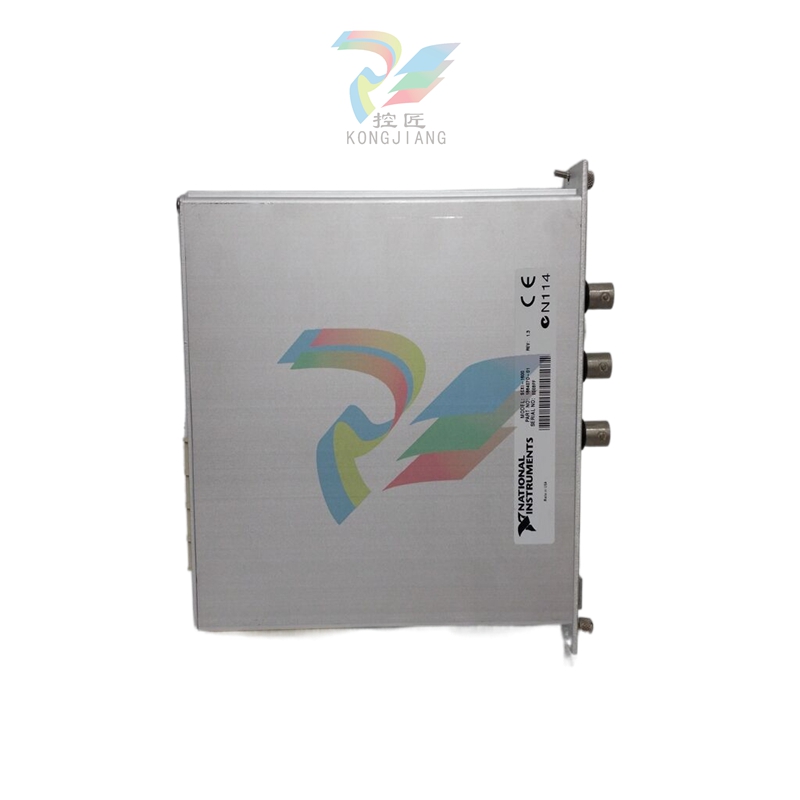

NI PXI-8186 CompactPCI embedded computer
NI PXI-8186 CompactPCI embedded computer
Product Overview
The NI PXI-8186 is an embedded computer that integrates a high-performance processor, mass storage, and multiple communication interfaces. It is designed based on the PXI (PCI extensions for Instrumentation) bus standard and can be used to build high-performance test, measurement and control systems. With compact structure and rich functions, this embedded computer is suitable for various industrial, scientific research and military applications.
Key Features
High-performance processor:
Equipped with a 2.2 GHz Pentium 4-M CPU to provide powerful computing power.
512 KB of on-chip cache and 256 MB of RAM (expandable to a larger capacity) ensure the stability and efficiency of system operation.
High-capacity storage:
Built-in 30 GB hard drive for storing operating system, applications and data.
Rich communication interfaces:
Integrated GPIB (IEEE 488.2) interface to support communication with other devices.
Provides 10/100BaseTX Ethernet port, IEEE 1284 parallel port, PCI-GPIB/TNT port, two USB 2.0 ports, PS/2 connector, and two serial ports to satisfy a variety of communication needs.
Graphics processing power:
Features an integrated Intel Extreme graphics core that supports realistic, intense 3D graphics rendering and highly detailed, smooth motion performance. No additional video card is required to meet graphics processing needs.
Expandability and compatibility:
Supports installation in compatible PXI chassis, occupying one system slot and three controller slots.
Compatible with a variety of software tools, such as NI-DAQ (Data Acquisition Library), NI-VISA (Instrument Driver Interface), etc., to facilitate user development and configuration.
Operating temperature range:
The standard version operates from 5 to 40°C.
An extended temperature version (part number: 778842-01) is available with an operating temperature of 0 to 55°C for a wider range of environmental conditions.
Physical Specifications
Dimensions: 8.1 x 13 x 21.6 cm (3U size PXI module).
Weight: 2.2 lbs.
Application Scenarios
The NI PXI-8186 CompactPCI embedded computer is suitable for a variety of test, measurement and control systems that require high-performance computing and multiple communication interfaces. For example, it can be used for automated test systems, data acquisition systems, and real-time control systems. Its compact structure and rich functionality make it an ideal choice for industrial, scientific research and military applications.
Precautions
Although NI PXI-8186 is a powerful embedded computer, it is still necessary to pay attention to its working environment and power supply requirements during use to ensure stable system operation.
When developing and configuring software, it is recommended that you refer to the official documentation and software tool guides provided by NI to take full advantage of the performance and functionality of this embedded computer.
Applications
Automated Test Systems
In automated test systems, the NI PXI - 8186 serves as the central controller. It coordinates the operation of various test instruments such as signal generators, power supplies, and data - acquisition modules. It can run test - software applications that control the test sequence, collect and analyze data, and generate test reports. For example, in an electronics - manufacturing - quality - control environment, it can manage the testing of printed - circuit boards (PCBs) by controlling the test equipment and processing the measurement results.
Industrial - Process Monitoring and Control
In industrial - process - monitoring applications, the embedded computer can collect data from sensors connected to PXI - based data - acquisition modules. It can then process and analyze the data to monitor the status of industrial processes such as temperature, pressure, and flow - rate control in chemical plants or manufacturing facilities. Based on the analysis, it can send control commands to actuators to adjust the process parameters and maintain optimal operating conditions.
Research and Development Laboratories
In research and development laboratories, the PXI - 8186 provides a computing platform for experimental setups. It can control and acquire data from a wide range of laboratory - equipment such as spectrometers, lasers, and electro - physical - measurement instruments. The ability to interface with multiple devices and the high - performance computing capabilities make it suitable for applications such as material - science research, biomedical - experimentation, and electronics - R & D.
