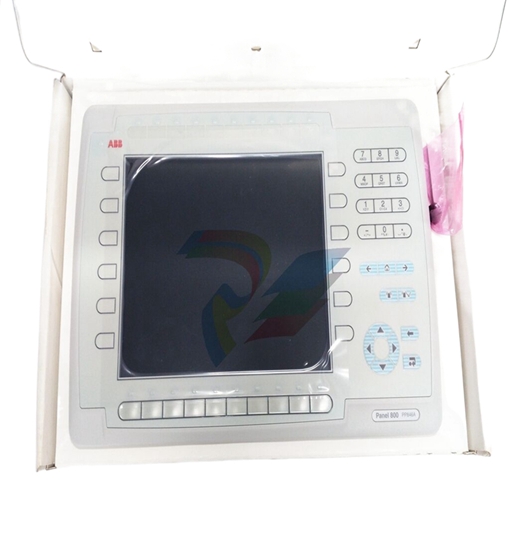

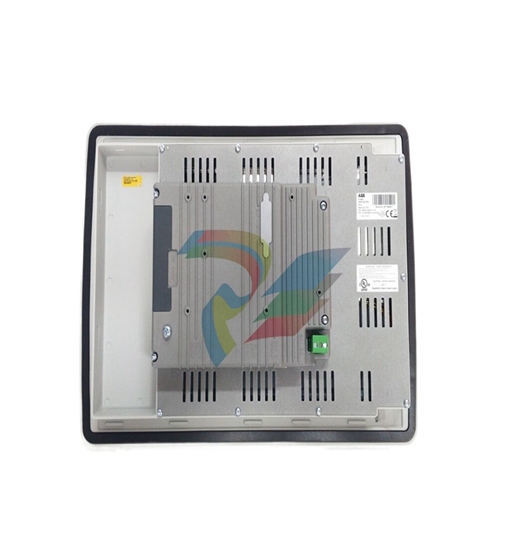

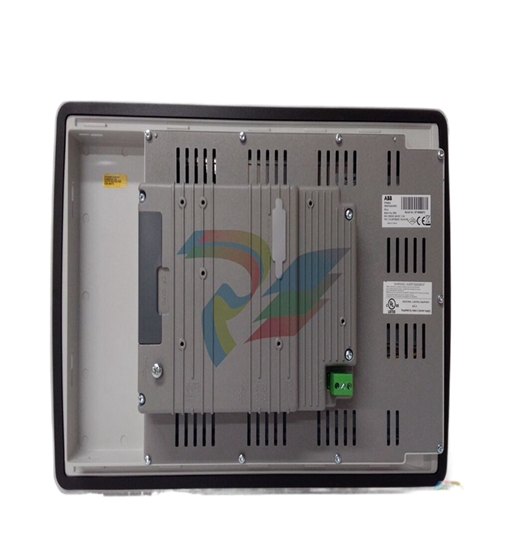

ABB PP846A 3BSE042238R2 操作面板
ABB PP846A 3BSE042238R2 操作面板
Panel 800操作面板是为了满足人机通信的需求而开发的。
内置功能，如显示和控制文本， 包括动态指示、时间通道、报警和配方处理。
操作面板在很大程度上以面向对象的方式工作，这使得它 易于理解和使用。面板的配置操作是在 个人计算机，使用配置工具Panel Builder 800。该项目是 然后传输并存储在操作面板中。
操作面板可以连接到许多类型的自动化设备，例如
作为可编程逻辑控制器，伺服或驱动器。 连接设备的通用术语。
本手册说明了如何安装操作面板。请参考手册
面板生成器800，编程和安装(3BSE042238R2)了解更多信息
信息。
面板800的发布历史如下所示。
版本描述用户文档
4.1面板800的初始发布，以及
固件版本1.0。
3BSE043450R101
(MA00796)
固件版本2.0的5.0版本
支持彩信报警和事件
和PROFIBUS-DP从接口
(CB801)。
3BSE043450R201
固件版本3.0的5.0/1版本。3BSE043450R301
(MA00796A)
The Panel 800 operator panel is developed to satisfy the demands of humanmachine communication. Built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm and recipe handling are included. The operator panel work, for the most part, in an object-oriented way, making it easy to understand and use. The configuration operation of the panel is made in a personal computer, using the configuration tool Panel Builder 800. The project is then transferred and stored in the operator panel. The operator panel can be connected to many types of automation equipment, such as PLCs, servos or drives. In this manual the expression “the controller“ is used as a general term for the connected equipment. This manual explains how to install the operator panel. Please refer to the manual Panel Builder 800, Programming and Installation (3BSE043445Rxxx) for further information. The release history of the Panel 800 is presented below. Version Description User documentation 4.1 Initial release of the Panel 800 and firmware version 1.0. 3BSE043450R101 (MA00796) 5.0 Release of firmware version 2.0 with support for MMS Alarm and Event and PROFIBUS-DP slave interface (CB801). 3BSE043450R201 5.0/1 Release of firmware version 3.0. 3BSE043450R301 (MA00796A) Warning, Caution, Information, and Tip Icons Section 1 Introduction 8 3BSE043450R501 Warning, Caution, Information, and Tip Icons This publication includes Warning, Caution, and Information where appropriate to point out safety related or other important information. It also includes Tip to point out useful hints to the reader. The corresponding symbols should be interpreted as follows: Although Warning hazards are related to personal injury, and Caution hazards are associated with equipment or property damage, it should be understood that operation of damaged equipment could, under certain operational conditions, result in degraded process performance leading to personal injury or death. Therefore, fully comply with all Warning and Caution notices. 5.1 Release of firmware version 4.0. 3BSE043450R401 (MA00796B) 5.1/3 Release of PP846A 3BSE043450R50
